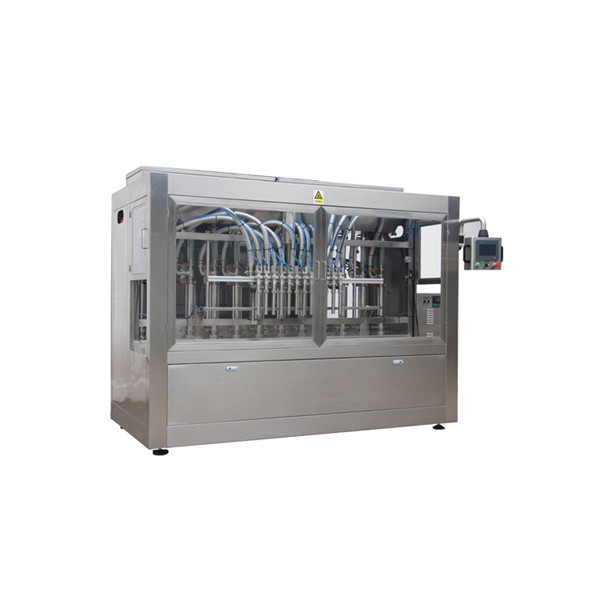

Automatski šesterokutni automatski stroj za punjenje tekućina

tehnički parametri

Model	Six head straight liquid filling machine
Vlast	500W
Napajanje	AC220/100V 50/60Hz
Tlak zraka	0.4-0.6Mpa
Ubrzati	50-60/min
Točnost	± 1%

Performance Features

Automatic filling machine series, suitable for beverage, juice, oil, liquid condiment, cosmetic hair care products, detergent, lubricating oil, pesticide and other fluid material quantitative filling, not restricted by the bottle type.

The automatic filling machine is a new machine designed by our company on the basis of the characteristics of several famous brand filling machines at home and abroad, combined with the experience of the company's years of production filling and the needs of the customers. The equipment can draw lessons from the good performance of high quality oprema za punjenje at home and abroad. The filling is fast and slow, no spillover, no drip filling finished, and the device has the characteristics of compact structure, simple operation and high degree of automation. It is really easy to adjust, no bottle and no filling, and the quantity of filling is accurate.

Full automatic quantitative filling machine, using the direct type design microcomputer control, accurate filling measurement, easy to adjust filling quantity, flexible and flexible application of 100-5000ML bottle type (including special type bottle) filling. More than 90% of the parts of the whole machine are made of 304 stainless steel, and 304, 316L for contacting material parts, which conform to international hygienic standard. It is beautiful and generous in appearance; the control system adopts imported electrical components and the working procedure is controlled by switch. The operation method is simple and convenient. Most of the transmission parts are controlled by high quality and precision pneumatic components, which have the characteristics of stable performance, safe and reliable operation, accurate measurement and so on.

1. The filling adjustment system is composed of variable frequency motor, PLC and touch screen, solenoid valve, material cylinder, actuator and other combination through control setting, which can be easily adjusted, easy to operate and accurate in measurement.

2. The container positioning system is completed by cylinder. The customer can adjust itself according to the containers of different specifications and shapes, the method is simple and the positioning is accurate.

3. The anti dripping system adopts cylinder control. When the filling nozzle is blocked, the recycle device for the leakage slot is adopted to further overcome the leakage phenomenon.

4, some filling materials are easily filled with bubbles. We design the filling nozzle into the outer plug to solve the bubble problem, and use the "PLC" program to control the function of the whole filling edge filling edge, so that the filling measurement is more accurate.
